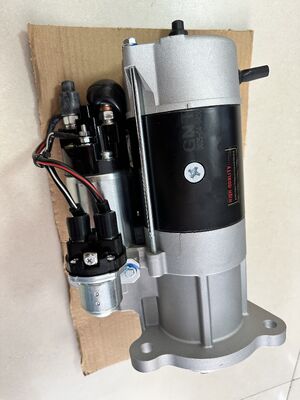

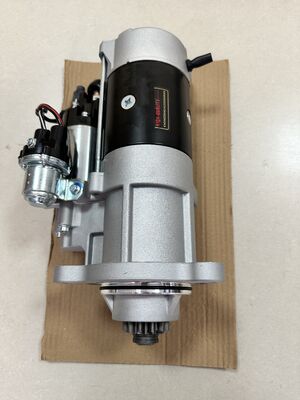

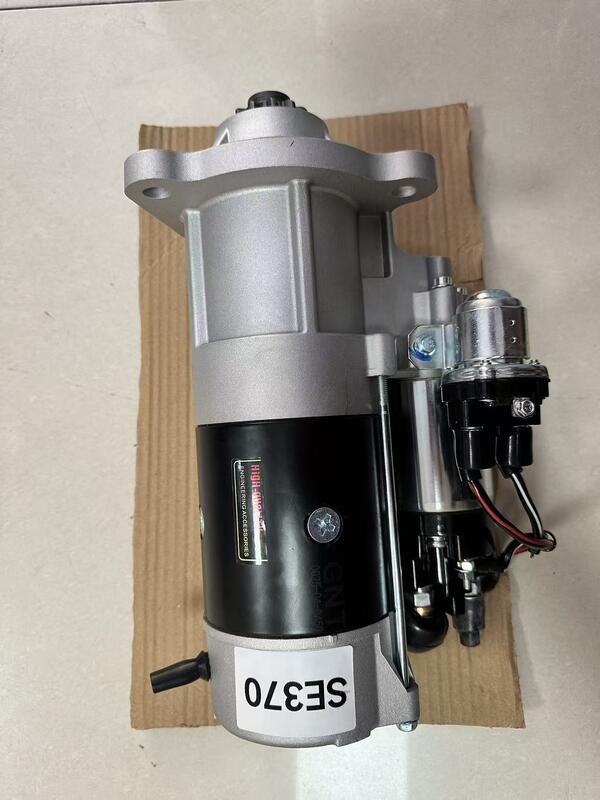

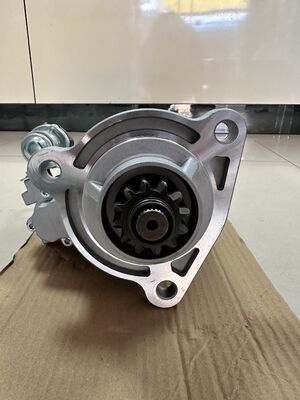

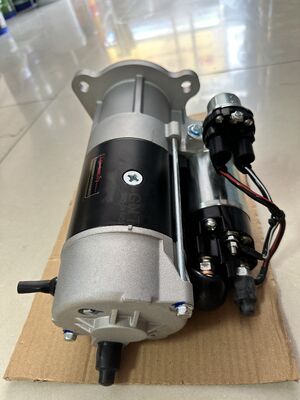

High Torque Starter Motor Assembly Replacement For Shantui SE370 Excavator Engine Starting Motor 24V
Dettagli:
| Luogo di origine: | Cina |
| Numero di modello: | SE370 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 10 |
|---|---|
| Prezzo: | $150-$300 |
| Imballaggi particolari: | scatola |
| Capacità di alimentazione: | 1000 |
|
Informazioni dettagliate |
|||
| Intervallo di temperatura operativa: | Da -40°C a 85°C | Energia: | Da 2,5 kW a 5 kW |
|---|---|---|---|
| Peso: | Da 5 kg a 10 kg | Numero di denti: | dalle 9 alle 12 |
| Nome prodotto: | motorino di avviamento per escavatore | Applicazione: | Escavatori |
| Direzione di rotazione: | In senso orario o antiorario | Tipo di montaggio: | Montaggio a flangia |
| Durabilità: | Elevata resistenza alle vibrazioni e agli urti | Compatibilità: | Adatto ai principali marchi di escavatori come Caterpillar, Komatsu, Hitachi |
| Tipo di ingranaggio: | Ingranaggio del pignone | Voltaggio: | 12V o 24V |
| Materiale: | Acciaio e rame di alta qualità | Tipo: | Motore di partenza |
Descrizione di prodotto
Basic Product Information
| project | content |
|---|---|
| Product Name | Starter Motor Assembly for Shantui SE370 Excavator |
| Application Model | Shantui SE370 Crawler Excavator |
| Voltage | 24V |
| Type | Engine Starting Motor / Cranking Motor |
| Condition | New Aftermarket Replacement Part |
| Quality Standard | OEM Equivalent |
| Package | Neutral Carton / Custom Packing Acceptable |
Product Functions and Features
| project | content |
|---|---|
| Main Function | Provides high torque to crank the engine and start the diesel motor quickly and reliably. |
| Working Principle | Converts electrical energy from the battery into mechanical rotational force to drive the engine flywheel. |
| Key Role | Core starting component of the excavator power system; ensures stable startup even in low-temperature and heavy-duty working conditions. |
| Matching System | Matches with engine electrical system, battery, wiring harness and ignition switch. |
Product Performance and Advantages
| project | Description |
|---|---|
| High Torque Output | Strong cranking force for fast startup of large-displacement diesel engines. |
| Heavy Duty Construction | Durable armature, copper coil and hardened gears for long service life. |
| Perfect Fit | Designed according to original size, plug-and-play without modification. |
| Stable Performance | Anti-vibration, anti-corrosion, suitable for construction site harsh environment. |
| Low Noise | Optimized gear structure reduces noise during startup. |
| Reliable Quality | 100% tested before shipment to ensure normal operation. |
Scope of Application and Usage Scenarios
| project | Content |
|---|---|
| Suitable Machine | Shantui SE370 Series Excavator |
| Engine Type | Matching original diesel engine configuration |
| Application Scenes | Earthmoving, quarrying, mining, road construction, municipal engineering, etc. |
| Working Environment | Adaptable to cold weather, high temperature, dusty and humid construction sites |
Installation & Usage Tips
| project | Instructions |
|---|---|
| Installation Method | Direct replacement, bolt-on installation, connect original wiring plug. |
| Pre-install Check | Check battery voltage, circuit connection and flywheel condition. |
| Usage Notice | Do not continuously start for more than 5–10 seconds to avoid overheating damage. |
| Maintenance Suggestion | Regularly check wiring terminals, keep clean and free of oil contamination. |
- 100% compatible with Shantui SE370 excavator
- High torque & fast engine start
- Heavy-duty design for long working life
- Strict factory inspection before delivery
- Suitable for global construction machinery maintenance market
- Support wholesale, bulk orders and OEM customization
